GMC PD4501-066 - Lady Greyhound

Engine Compartment

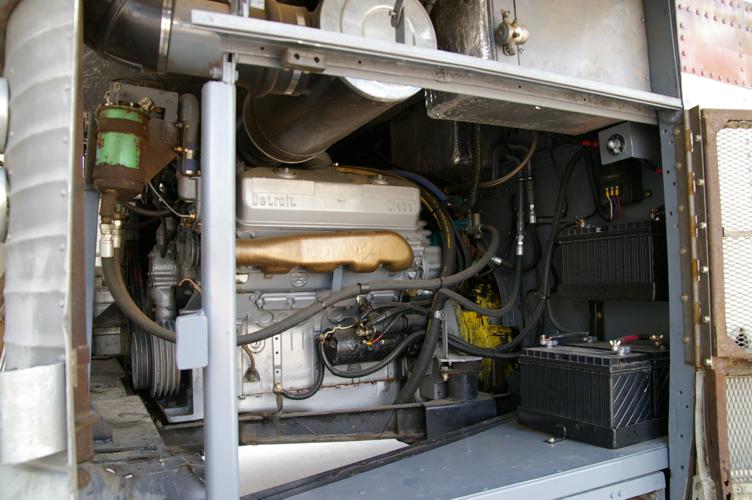

This is the best looking part of the bus right now. You can see all the fresh paint on the motor and bulkheads, and a lot of shiny new parts. A few parts still have the old chipped paint, those are the ones that were swapped straight onto the new engine. For those familiar with the Scenicruisers, you'll notice that the electrical junction box has been moved to make room for the new intake filter. Also the old battery tray has been removed. The batteries were moved down to where the old a/c system used to be.

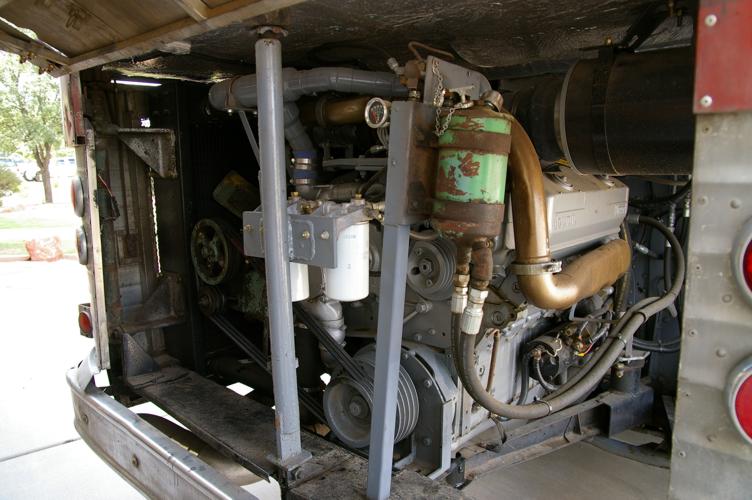

The only significant changes to the engine are the addition of a turbo, aftercooler, and jake brakes. A few other things did get moved around in order to accomodate the turbo, and to make the compartment more mechanic-friendly.
